| Place of Origin: | china |
|---|---|
| 브랜드 이름: | TD |
| 인증: | CE,ISO |
| Model Number: | TDDL25032901--. |
| Minimum Order Quantity: | 10 |
| 가격: | $345 |
| Packaging Details: | Packed in Carton Boxes, and Then Wooden Pallets |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 5000/M |
| Motor: | AC 380V 2.2kw | Gear Pump: | 2.1cc/R |
|---|---|---|---|
| Tank: | 20L Palstic Tank with Drain Plug | Oil Port: | G3/8 |
| Working Pressure: | 18MPa | Noise: | <80 Decibels |
| Customization: | Available | Warranty: | 1 Year |
| Delivery Time: | 7 Days Below 50 Units | Shipment: | by Sea or by Air |
| 강조하다: | 380V 3HP mini hydraulic power pack,double acting hydraulic station for machine tools,hydraulic power pack for injection molding |
||

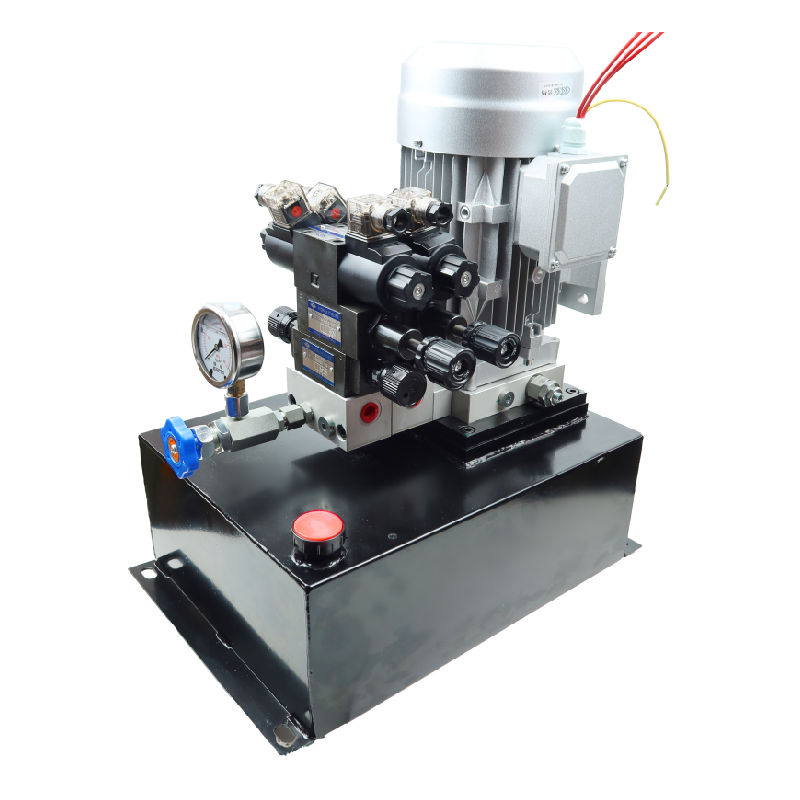

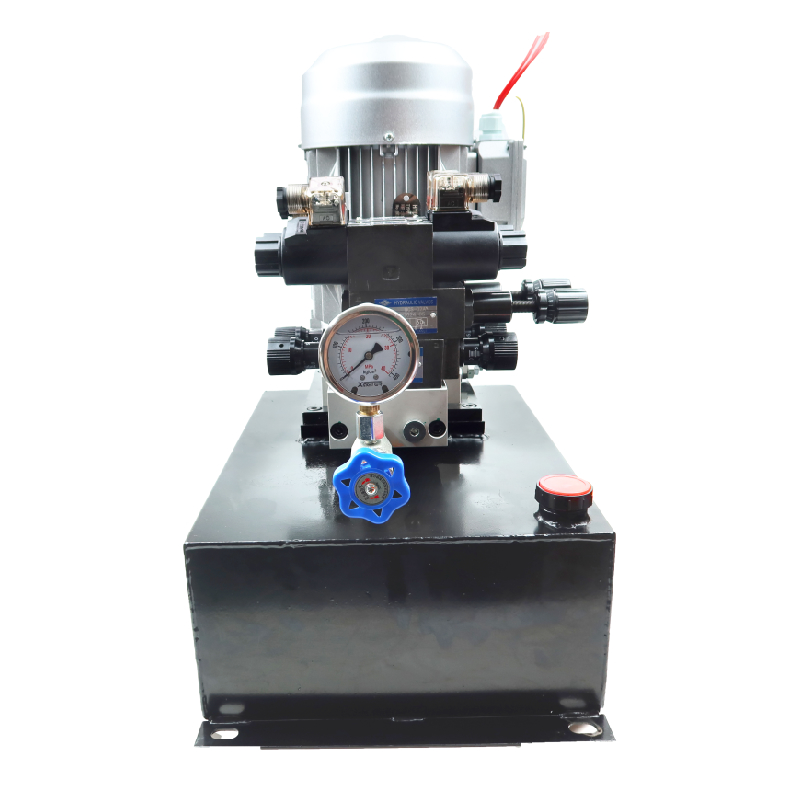

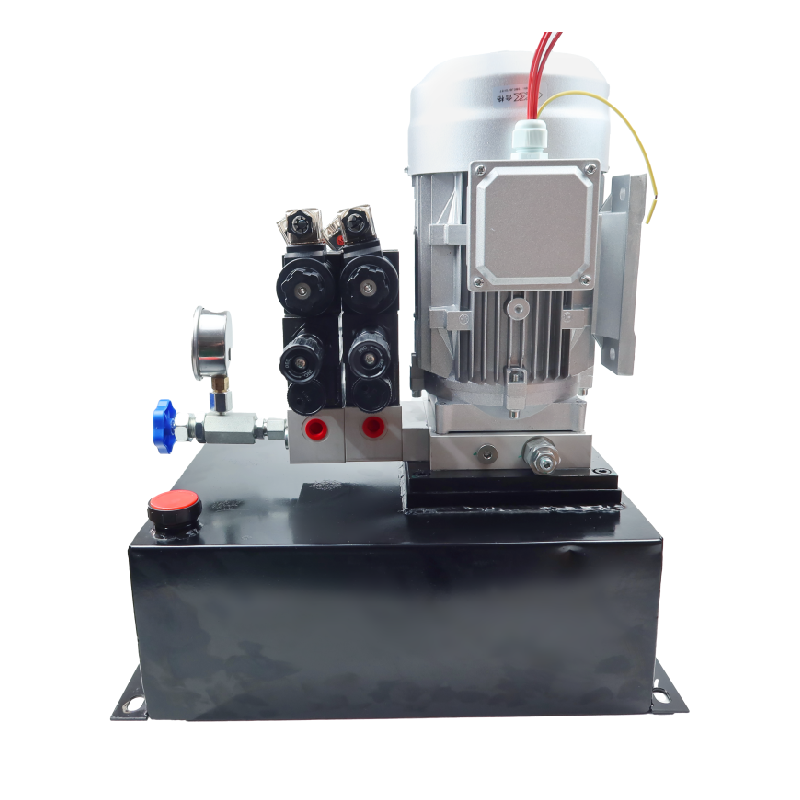

Compact hydraulic power pack designed for hydraulic machine tools and injection molding machines, featuring high-pressure capability and quiet operation.
| Attribute | Value |
|---|---|
| Motor | AC 380V 2.2kw |
| Gear Pump | 2.1cc/R |
| Tank | 20L Plastic Tank with Drain Plug |
| Oil Port | G3/8 |
| Working Pressure | 18MPa |
| Noise | <80 Decibels |
| Customization | Available |
| Warranty | 1 Year |
| Delivery Time | 7 Days Below 50 Units |
| Shipment | by Sea or by Air |
| Component | Specifications | Benefits |
|---|---|---|
| Motor | AC 380V, 2.2kW | Durable and stable performance |
| Gear Pump | 2.1cc/rev | Precision design for accurate flow control |
| Tank Capacity | 20L Plastic tank | Corrosion-resistant and easy to maintain |
| Oil Port | G3/8 | Compatible with most hydraulic systems |
| Weight | 30kg (G.W.) | Portable and easy to install |
| Working Pressure | 18MPa | High-pressure capability for demanding applications |
| Noise Level | <80 decibels | Quiet operation ideal for various environments |
